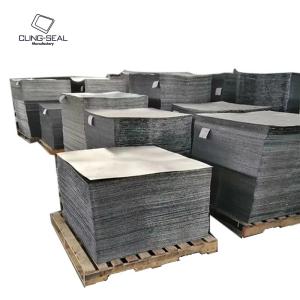

Stamped Flexible Graphite Sheet Impact Resistant Industrial Grade

  • 1
  • 2
  • 3

Brand Name : CLINGSEAL

Model Number : CSG80

Certification : ISO,SGS

Place of Origin : CHINA

MOQ : 500kg

Price : 2.2USD PER KG

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500Tons per month

Delivery Time : 20 days

Packaging Details : pallet/wooden case

Grade : Industrial Grade

C content (%) : 99.9%

Impact Resistance : Shock Absorption

Type : Flexible Sheet

Thickness : Customizable

Material : High-Pure Graphite，Graphite,

Aging Resistance : Long - Term Durability

Industry Application : Oil & Gas, Chemical, Power

Wear Resistance : Long - Lasting Surface

Contact Now

Products Description

Precision-Stamped Flexible Graphite Gaskets
Stamped flexible graphite gaskets belong to the flexible graphite material family, including sheets, foils, papers, tapes, and strips. These gaskets are manufactured by chemically treating natural graphite flakes and subjecting them to high-temperature exfoliation, forming worm-like structures with approximately 0.003g/cm³ density. The binder-free expanded graphite is then rolled into coils, offering:
  • 99.5% purity
  • Chemical resistance
  • Radiation tolerance
  • Extreme temperature stability (-200°C to +650°C)
  • Compression recovery
  • Self-lubricating properties
  • Gas-tight sealing performance
Ideal for low-pressure systems, these stamped flexible graphite gaskets can be combined with metal substrates to create composite solutions.
Manufacturing & Applications:
  1. Die-stamped packing rings for valves/pumps
  2. Laser-cut composite gaskets with metal inserts
  3. CNC-machined thick gaskets for high-temperature insulation
  4. Pre-cut stamped flexible graphite gaskets for quick installation
Customization Options:
  • Available in 0.15-5.0mm thickness
  • Standard sizes: 1000x1000mm / 1500x1500mm sheets
  • Custom stamped shapes/sizes up to 2000mm
  • Density: 0.8-1.25g/cm³
  • Composite grades: Graphite-metal laminates
Production Process:
Natural flake graphite → Chemical intercalation → High-temperature expansion → Calendaring → Die-stamping → Quality inspection
Item Standard Value
C concentration 99%
S concentration <1000ppm
chlorine concentration <45ppm
tensile strength 4.5MPa
compressibility >40%
recovery >10%
Temperature -200ºC-600ºC
Pressure 20MPa
Terence of Thickness -0.04mm~+0.04mm
Terence of Dimension In accordance with your Gasket size
Terence of Density -0.06~g/cm3+0.06gcm3

Grades Separate :JB/T53392-1999
Mechanical Data Qualified product Top Grade Superior Grade
Density Tolerance
g/cm3		 <0.4 ±0.10
±0.05
≥0.4 ±0.07
Tensile Strength MPa ≥3.2 ≥4.5 ≥5.0
Compression Ratio % 35~55
Rebound Rate % ≥9 ≥11 ≥12
Stress relaxation rate % ≤10
Ash % ≤6.0 ≤3.0 ≤1.0
Heat loss on ignation % 450ºC ≤1.0 ≤0.5
600ºC ≤20 ≤15

Sulphur content 		≤1500ppm ≤1000ppm ≤600ppm

Chloride content		 ≤100ppm ≤50ppm ≤20ppm

Stamped Flexible Graphite Sheet Impact Resistant Industrial Grade

Stamped Flexible Graphite Sheet Impact Resistant Industrial Grade

Stamped Flexible Graphite Sheet Impact Resistant Industrial Grade
